Description

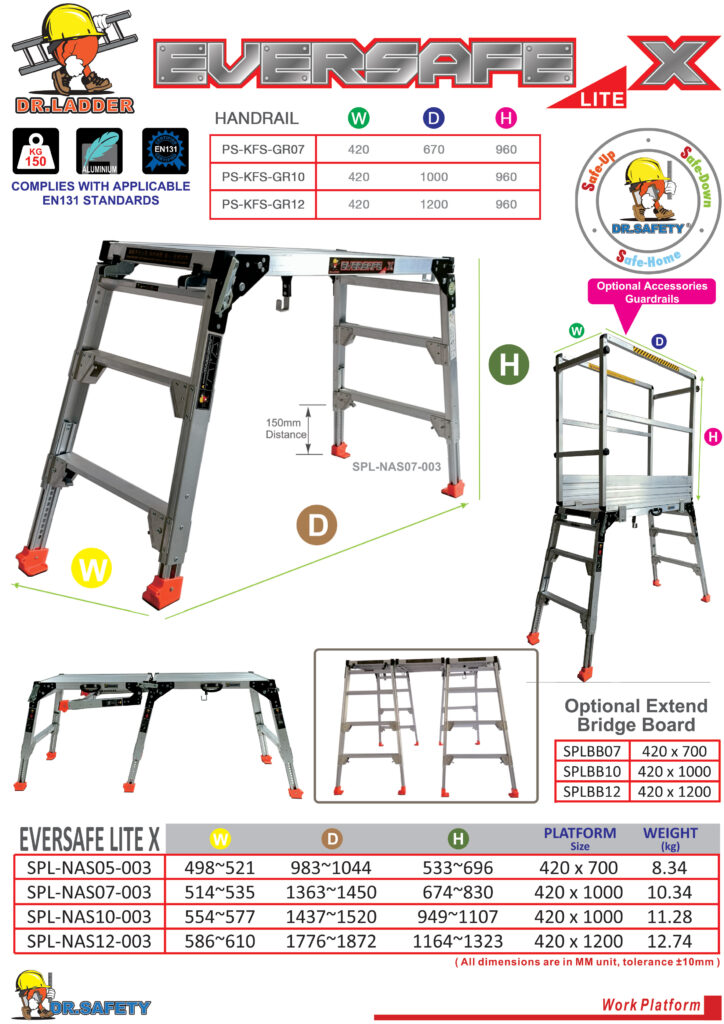

MODEL | NET WEIGHT (KG) | WIDTH (W) | DEPTH (D) | HEIGHT (H) | HANDRAIL WIDTH (W1) | HANDRAIL DEPTH (D1) | HANDRAIL HEIGHT (H1) | HANDRAIL WEIGHT (KG) |
SPL-NAS05-003 | 8.34 | 498-521 | 983-1044 | 533-696 | 670 | 420 | 960 | 7 |
SPL-NAS07-003 | 10.34 | 514-535 | 1363-1450 | 674-830 | 1000 | 420 | 960 | 8 |
SPL-NAS10-003 | 11.28 | 554-577 | 1437-1520 | 949-1107 | 1000 | 420 | 960 | 8 |
SPL-NAS12-003 | 12.74 | 586-610 | 1776-1872 | 1164-1323 | 1200 | 420 | 960 | 9 |
MODEL | HANDRAIL WIDTH (W1) | HANDRAIL DEPTH (D1) | HANDRAIL HEIGHT (H1) | HANDRAIL WEIGHT (KG) |
PS-KFS-GR07 | 420 | 670 | 960 | 7 |
PS-KFS-GR10 | 420 | 1000 | 960 | 8 |
PS-KFS-GR12 | 420 | 1200 | 960 | 9 |
All dimensions are in MM unit, tolerance±10mm
